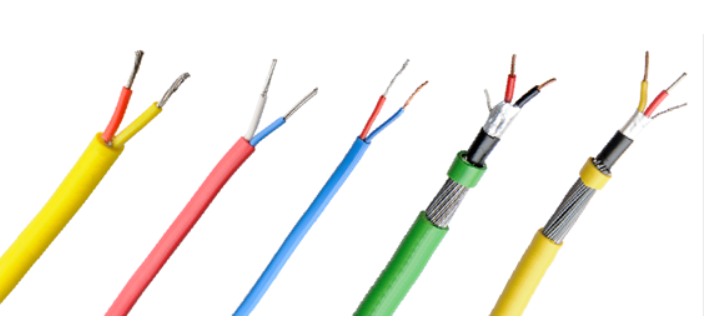

| Extension Cable | ||
|---|---|---|
| KX(NiCr/NiA) JX(Fe/CuNi) EX(NiCr/CuNi) TX(Cu/CuNi) |
Chromel Iron Chromel Copper |
Alumel Constantan Constantan Constantan |
| COMPENSATING CABLE | ||
| KX(A)/VX(NiCr/NiAI) SX/RX(PtRh-Pt) |
Copper Copper |
Constantan Constantan |
| STANDARDS REFERRED | ||
|---|---|---|
| ANSI MC – 96.1 ENI – 163.00+ve -ve overallEXTANSION CABLE KX YELLOW RED YELLOW JX WHITE RED BLACK TX BLUE RED BLUE EX PURPLE RED PURPLE |
IS : 8784
+ve -ve overall RED GREEN GREEN RED BLUE BLUE RED BLACK BLACK RED VIOLET VIOLET |
B.S.
+ve -ve overall BROWN BLUE RED YELLOW BLUE BLACK WHITE BLUE BLUE BROWN BLUE BROWN |
| COMPENSATING CABLE | ||
| KX(A)/VX – – –
SX/RX – – – GREEN |
RED GREEN GREEN
RED WHITE WHITE |
WHITE BLUE RED
WHITE BLUE GREE |
